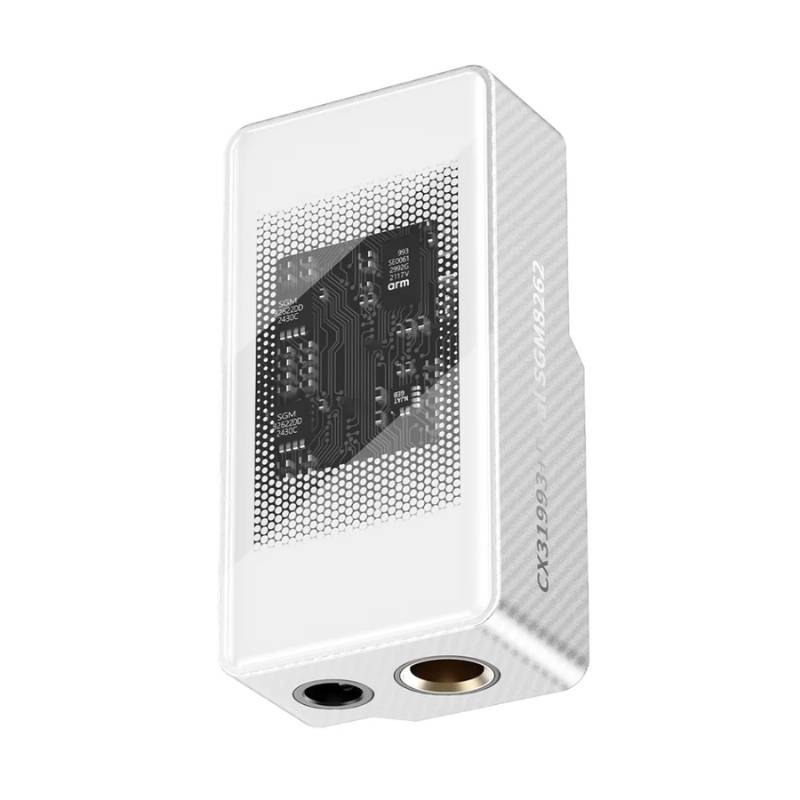

JCALLY x Crinacle AP6 Portable DAC & Headphone Amplifier
৳ 5,990
JCALLY x Crinacle AP6 Portable DAC & AMP with 3.5mm + 4.4mm Output
The JCALLY x Crinacle AP6 is a premium portable USB DAC and headphone amplifier co-designed with renowned audio reviewer Crinacle. Featuring the Conexant CX31993 DAC and dual SGM8262 op-amps, it delivers detailed, low-distortion Hi-Res audio with both 3.5mm single-ended and 4.4mm balanced outputs. Supporting PCM decoding up to 32-bit/384kHz, the AP6 is an excellent upgrade for smartphones, tablets, laptops, and desktop computers, providing powerful output for both IEMs and headphones.
Specifications
| Specification | Details |
|---|---|
| Product Name | Portable DAC & Headphone Amplifier |
| Model | JCALLY x Crinacle AP6 |
| DAC Chip | Conexant CX31993 |
| Amplifier Chip | Dual SGM8262 Op-Amps |
| Audio Resolution | PCM up to 32-bit / 384kHz |
| Headphone Outputs | 3.5mm Single-Ended + 4.4mm Balanced |
| Maximum Output Power | 115mW @ 32Ω (3.5mm) 440mW @ 32Ω (4.4mm Balanced) 540mW @ 16Ω (4.4mm Balanced) |
| Signal-to-Noise Ratio (SNR) | 118dB (3.5mm) 116dB (4.4mm) |
| Dynamic Range (DNR) | 96dB (3.5mm) 98dB (4.4mm) |
| Total Harmonic Distortion (THD+N) | ≤0.003% |
| Output Impedance | 0.6Ω (3.5mm) 1.0Ω (4.4mm) |
| Crosstalk | 72dB (3.5mm) 114dB (4.4mm) |
| Noise Level | 2.5μV (3.5mm) 5.0μV (4.4mm) |
| Functions | Music Playback, Gaming, Live Streaming, Voice Calls, Recording, Microphone Support |
| Compatibility | Android Smartphones, iPhone (with compatible adapter), iPad, Windows 10/11 PCs, macOS Computers (USB Audio Class 2) |
| Unsupported Devices | USB Audio Class 1 (UAC1.0) devices such as Nintendo Switch, PS5, and Windows 7 PCs |
| Input Port | USB Type-C Female |
| Housing Material | 5-axis CNC Machined Aluminum Alloy with Curved Tempered Glass |
| Color | Silver |
| Dimensions | 38.7 × 19.9 × 12.8 mm |
| Net Weight | 13.5g ±1g |
| Gross Weight | 50g ±5g |
About This Item
- Co-Designed with Crinacle – Developed in collaboration with renowned audio reviewer Crinacle to deliver balanced sound quality and exceptional performance.
- Powerful Output – Delivers up to 540mW @ 16Ω through the 4.4mm balanced output, making it suitable for both sensitive IEMs and full-size headphones.
- Dual Audio Outputs – Features both 3.5mm single-ended and 4.4mm balanced headphone outputs for maximum compatibility.
- Premium DAC & Amplification – Equipped with the Conexant CX31993 DAC and dual SGM8262 op-amps for detailed, low-noise, and low-distortion sound.
- Hi-Res Audio Support – Supports PCM decoding up to 32-bit/384kHz for high-resolution music playback.
- Low Output Impedance – Optimized for accurate sound reproduction with various IEMs and headphones.
- Premium Aluminum Housing – Precision CNC-machined aluminum alloy body provides durability, excellent heat dissipation, and a premium finish.
- Plug-and-Play USB-C – No battery or drivers required. Simply connect to compatible Android devices, iPhones, tablets, laptops, and desktop computers.
- Wide Compatibility – Compatible with Android, iOS, Windows 10/11, and macOS devices supporting USB Audio Class 2 (UAC2).
Why Choose the JCALLY x Crinacle AP6?
- Co-developed with renowned audio reviewer Crinacle.
- Conexant CX31993 DAC with dual SGM8262 amplifier chips.
- Supports Hi-Res Audio up to 32-bit/384kHz.
- 3.5mm Single-Ended and 4.4mm Balanced outputs.
- Up to 540mW balanced output power.
- Low noise, low distortion, and low output impedance.
- Premium CNC-machined aluminum alloy construction.
- Plug-and-play USB-C connectivity for smartphones, tablets, laptops, and PCs.
Package Contents
- 1 × JCALLY x Crinacle AP6 Portable DAC & AMP
- 1 × USB Type-C to Type-C Cable
- 1 × User Manual
Warranty
Gadget Breeze Care Warranty: 7 Days Replacement Warranty for manufacturing defects only. The product must be returned with all original accessories and packaging. Physical damage, liquid damage, misuse, modification, or customer-caused faults are not covered. Terms and conditions apply.
