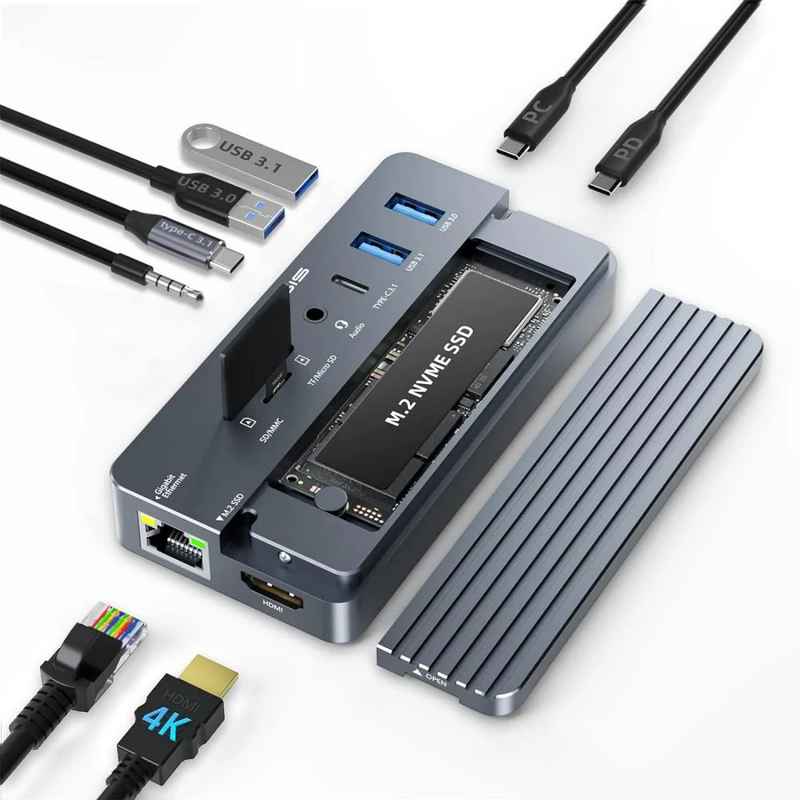

ACASIS CM073 10-in-1 USB-C Hub with M.2 SSD Enclosure

ACASIS CM073 10-in-1 USB-C Hub with M.2 SSD Enclosure Overview

The ACASIS CM073 10-in-1 USB-C Hub with M.2 SSD Enclosure is an all-in-one connectivity and storage solution for laptops, MacBooks, and compatible USB-C devices. Combining multiple expansion ports with a built-in SSD enclosure, it helps create a cleaner and more productive workspace.

Featuring up to 10Gbps data transfer, 4K 60Hz HDMI output, 100W Power Delivery input, Gigabit Ethernet, and SD/TF card readers, the ACASIS CM073 offers versatile connectivity in a compact aluminum alloy body.

Key Features

• 10-in-1 Expansion: Connect storage devices, external displays, memory cards, wired networks, and audio accessories.
• Integrated M.2 SSD Enclosure: Supports compatible NVMe and SATA M.2 SSDs with up to 8TB capacity.
• 10Gbps Data Transfer: High-speed USB-C and USB-A connections for supported peripherals.
• 4K HDMI Output: Connect a compatible external monitor at up to 4K resolution and 60Hz refresh rate.
• 100W USB-C PD Input: Connect a compatible power adapter to supply power through the hub.
• Gigabit Ethernet: RJ45 connection for stable wired networking up to 1000Mbps.
• SD and TF Card Readers: Convenient access to compatible memory cards.
• Aluminum Alloy Housing: Compact metal construction designed for portability and heat dissipation.

Built-in M.2 NVMe and SATA SSD Enclosure

The ACASIS CM073 10-in-1 USB-C Hub includes an integrated SSD enclosure, allowing users to expand storage without carrying a separate external drive case.

It supports M.2 NVMe SSDs at up to 10Gbps and compatible SATA M.2 SSDs at up to 5Gbps. Supported SSD form factors include 2230, 2242, 2260, and 2280, with a maximum supported capacity of 8TB.

The removable enclosure cover makes SSD installation convenient, while the included thermal pad helps transfer heat from the installed drive.

4K 60Hz HDMI Display Output

Connect an external monitor or display through the HDMI interface with support for resolutions up to 4K at 60Hz. This is useful for presentations, multitasking, video editing, and extended desktop setups.

Note: HDMI output requires a compatible host USB-C port with DisplayPort Alt Mode support. Actual display resolution and refresh rate depend on the connected device and monitor.

10Gbps USB Connectivity

The hub provides a USB-C data port supporting up to 10Gbps, a USB-A 3.1 Gen 2 port supporting up to 10Gbps, and a USB-A 3.0 port supporting up to 5Gbps.

These interfaces allow users to connect external storage, USB accessories, and other compatible devices while keeping their workspace organized.

100W Power Delivery and Gigabit Ethernet

The dedicated USB-C Power Delivery input supports up to 100W from a compatible power adapter. Actual power available to the connected host device may be lower because the hub also consumes power.

For demanding setups involving multiple connected peripherals, using an appropriate external power adapter is recommended.

The integrated Gigabit Ethernet port supports 10/100/1000Mbps wired network connections, offering an alternative to wireless networking when a compatible Ethernet connection is available.

SD/TF Card Readers and Audio Connectivity

The ACASIS CM073 includes SD and microSD/TF card readers supporting transfer speeds up to 104MB/s with compatible cards and systems.

A 3.5mm combination audio and microphone jack is also provided for compatible wired audio accessories.

ACASIS CM073 Specifications

What’s in the Box?

• 1 × ACASIS CM073 10-in-1 USB-C Hub
• 1 × USB-C to USB-C Cable
• 1 × Silicone Case
• 1 × Thermal Pad
• 2 × Rubber SSD Stoppers
• 1 × User Manual

ACASIS CM073 10-in-1 USB-C Hub Price in Bangladesh

Looking for the ACASIS CM073 10-in-1 USB-C Hub price in Bangladesh? Explore the ACASIS CM073 with M.2 SSD Enclosure at Gadget Breeze. It is a practical choice for users who need external SSD storage, 4K display connectivity, high-speed USB ports, and wired networking in a single compact accessory.

Frequently Asked Questions

Does the ACASIS CM073 support NVMe and SATA SSDs?

Yes. The enclosure supports compatible M.2 NVMe and SATA SSDs in 2230, 2242, 2260, and 2280 sizes.

What is the maximum SSD capacity?

The ACASIS CM073 supports up to 8TB of compatible M.2 SSD storage.

Does the ACASIS CM073 support 4K 60Hz?

Yes. Its HDMI output supports up to 4K at 60Hz when the connected host device supports the required video output mode.

Can I charge my laptop through this hub?

The hub accepts up to 100W USB-C PD input and can supply power to compatible host devices. Actual charging power depends on the adapter, hub consumption, and host compatibility.

Is an SSD included?

The product is an SSD enclosure and USB-C hub. An SSD is not listed among the standard package contents and should be purchased separately unless specifically included in the seller’s offer.
